extra string in the template V1

Instructions to call an extra string in the template V1

In the template where the string "Desc." can be modified, it is also necessary to handle the other displayable parameters accordingly. The easiest way to implement this is via a scheduler. For this reason, the display is primarily intended for use in C.

First, here are the requested messages:

• Load template "1V"
  Bus=2, ID=2043, Type=D, DLC=8, Data=0 0 1 0 0 0 0 0
CANID 0x7FB, DLC=8, Data(hex)=00 00 01 00 00 00 00 00

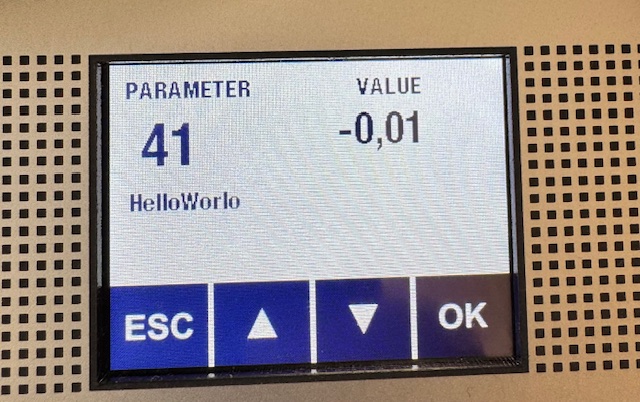

• String 0, part 1 with content "Hello"
  Bus=2, ID=2043, Type=D, DLC=8, Data=1 0 72 101 108 108 111 255
CANID 0x7FB, DLC=8, Data(hex)=01 00 48 65 6C 6C 6F FF
• String 0, part 2 with content "World"
  Bus=2, ID=2043, Type=D, DLC=8, Data=2 0 87 111 114 108 100 255
CANID 0x7FB, DLC=8, Data(hex)=02 00 57 6F 72 6C 64 FF

Important note: To display the full page, additional messages are absolutely required. You already have the description, alternatively you can download it here: https://barth-elektronik.com/media/7b/44/d5/1723470729/9045-0023-B.zip and view it in the document "1702060108_Barth_DMA-20_STG-8xx.pdf".

If you intend to use the micon-L, things become more challenging. That’s why there is also a "one-message" variant for micon-L. However, please note that in this version, the description cannot be changed.
