STG-500

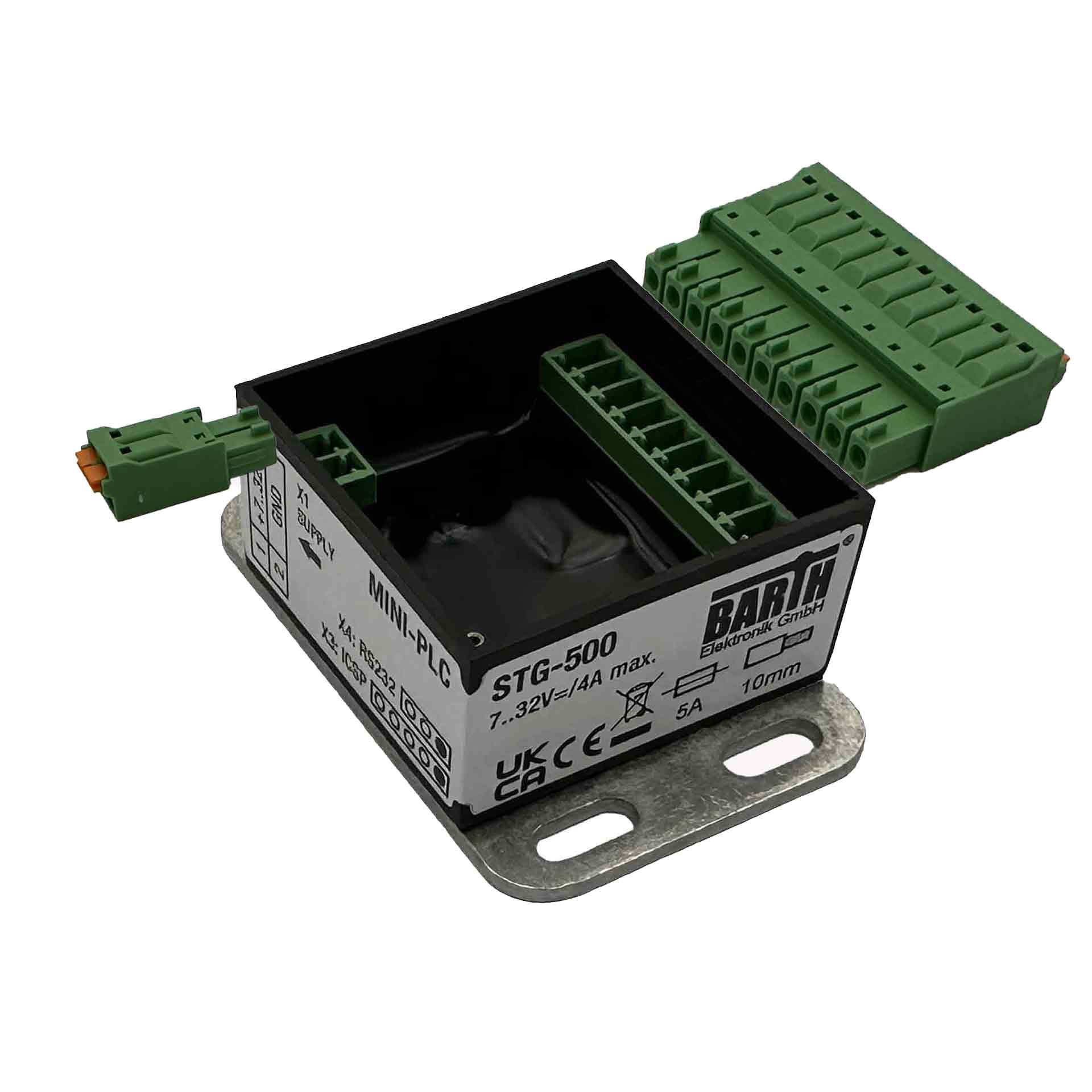

lococube® mini-PLC STG-500

Product information "lococube® mini-PLC STG-500

• 3 analog Inputs 0..30 VDC
• 2 digital Inputs up to 1 kHz
• 4 Power Outputs up to 1.5 A
• 1 Power PWM Output 2 A/1..5 kHz
• Reliable Solid-State Outputs
• Programmable Status LED
• RS232 Connection to PC
• Integrated Temperature Sensor
• Intuitive graphical Programming Capability (VK-10 + USB Adapter required)
• Wide Operating Voltage Range 7..32 VDC
• Wide Operating Temp. Range -40..+70°C
• Vibration resistant and rugged Sealing
• Very low Current Consumption
• Universal Aluminium Mounting Plate
• CE, UKCA, and RoHS certified
• Engineered and manufactured in Germany
• Dimensions (LxWxH): 40x40x22mm
• Weight: 50
• Product number: 0850-0500
• Manufacturer: BARTH® Elektronik GmbH

• EAN: 4251329400026

  ---

  Documents


  Manual STG-500 (EN)
  Drawing STG-500

  ---

  Model Data

  3D-Data (PDF and STEP)
