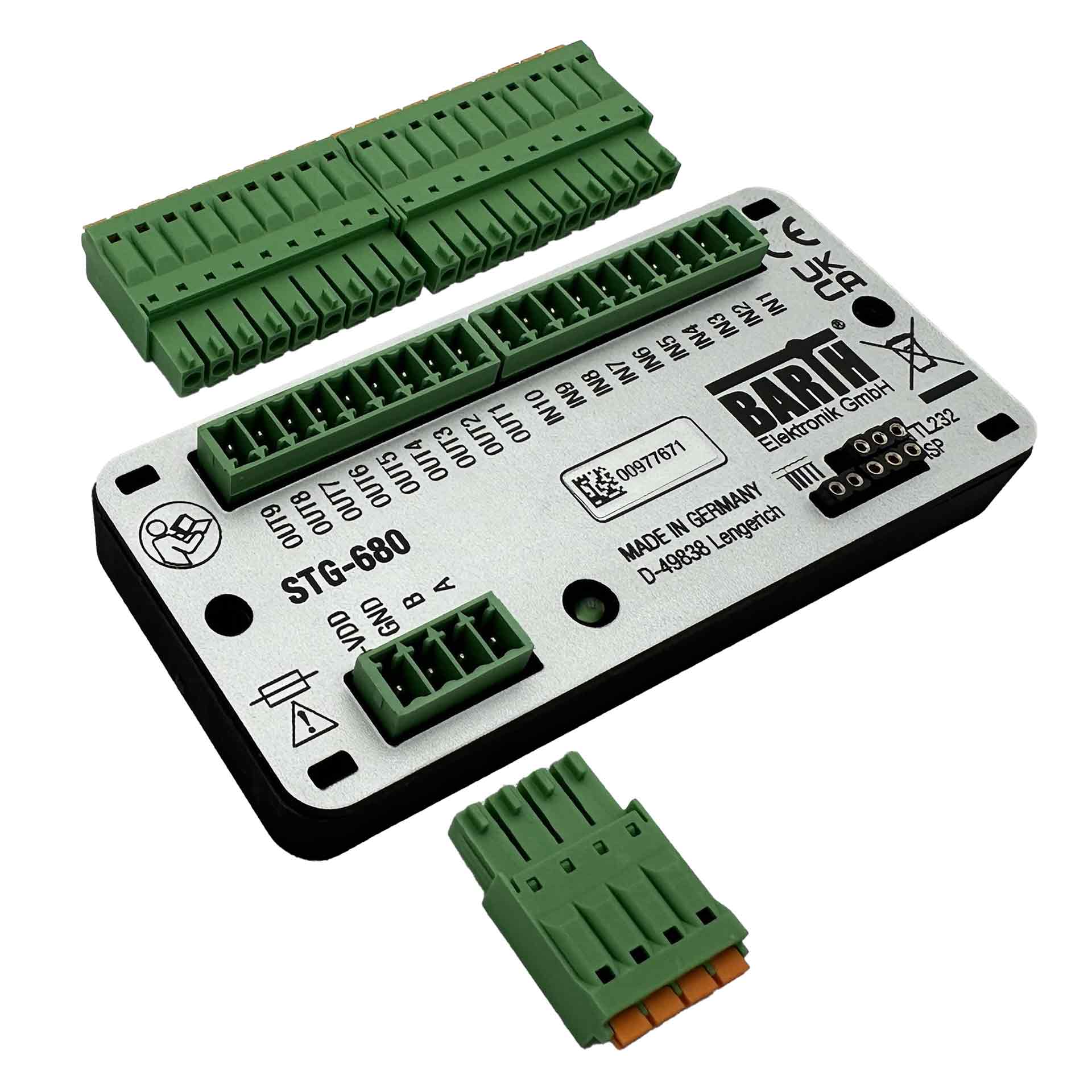

lococube® mini-PLC STG-680
Product information "lococube® mini-PLC STG-680"
- Small & universal MODBUS Logic Controller
- 6 analog Inputs 0..10 VDC, 12 bit ADC
- 4 digital Inputs up to 1 kHz
- 8 Power Outputs up to 1.5 A
- 1 Power PWM Output 2 A/1 to 10 kHz
- 1 MODBUS RTU Interface
- Graphically programmable MODBUS Data
- Reliable Solid-State Outputs
- Fail Safe Oscillator
- Programmable Status LED
- TTL-232/USB Connection to PC
- Intuitive graphical Programming Capability
- Wide Operating Voltage Range 7..32 VDC
- Wide Operating Temp. Range -40..+60°C
- Ultraflat Housing, Height 11 mm
- Vibration resistant and rugged Sealing
- CE, UCKA, and RoHS certified
- Engineered and manufactured in Germany
- Dimensions (LxWxH): 93x45x15mm
- Weight: 80g
- Product number: 0850-0680
- Manufacturer: BARTH® Elektronik GmbH
EAN: 4251329400149
Documents
Manual STG-680 (EN) Drawing for STG-680
Model Data
