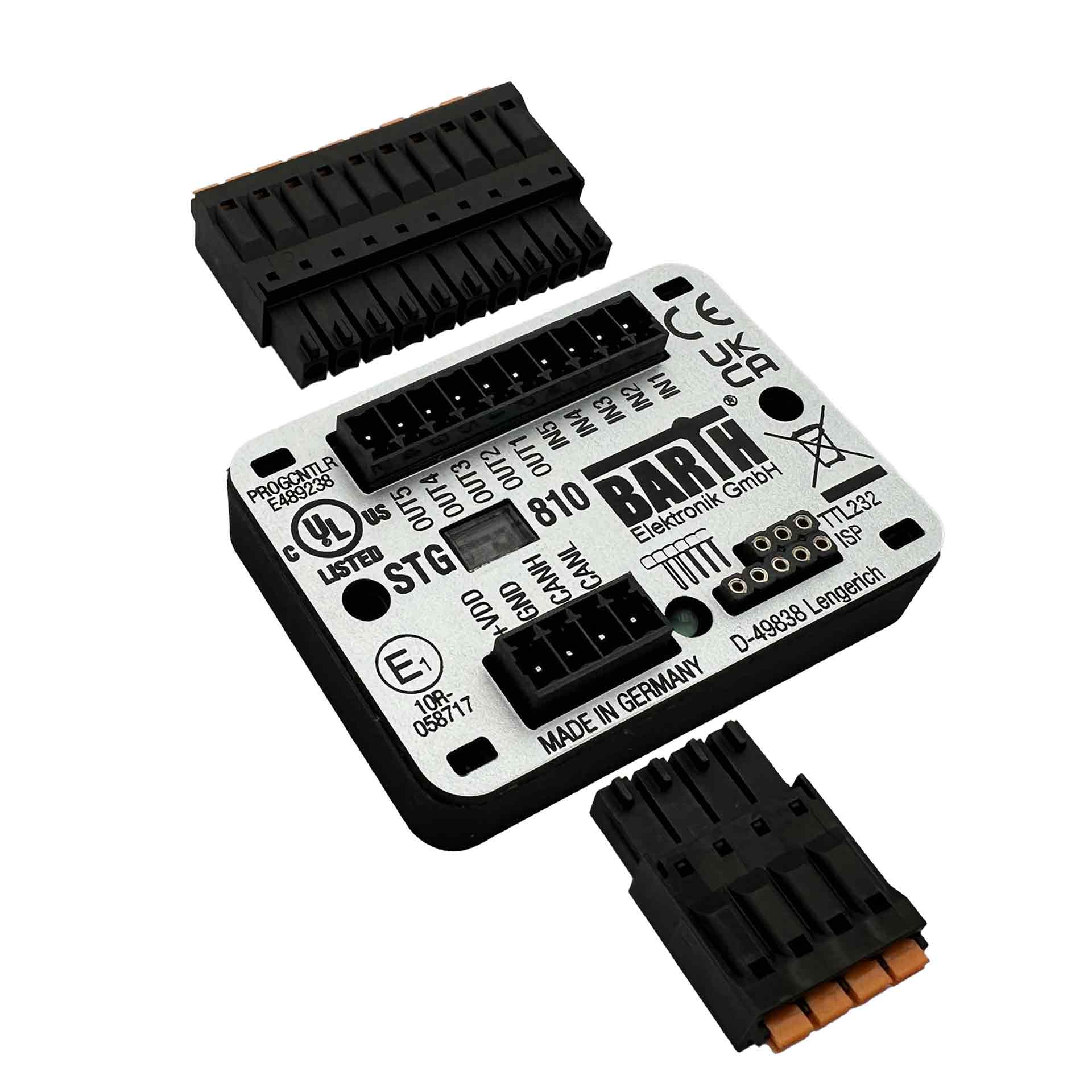

lococube® mini-SPS STG-810
Product information "lococube® mini-PLC STG-810 "
- Tiny and super-flat CAN Logic Controller
- High-Performance 32 Bit ARM® Cortex®
- 3 analog Inputs 0 to 30 VDC, 12 bit ADC
- Event Counter Input 25 kHz
- Pulse and Frequency Counter Input 40µs
- 4 Solid-State Power Outputs up to 1.5 A
- 1 Power PWM Output 16 Bit 1 Hz to 25 kHz
- CAN 2.0A/B Interface
- CANopen® and SAE J1939 Interface (no native miCon-L support!)
- Optical IrDA/SIR Interface (Infrared)
- TTL-232 3.3V Interface
- Comprehensive Fail Safe Functions
- Intuitive graphical Programming Capability with miCon-L
- Open Source ‚C‘ Programming (Please note that the miCon-L firmware is irreversibly overwritten by “open source”
programming and that we cannot release this firmware!) - Compatible with PG-65 Programmer
- Wide Operating Voltage Range 7 to 32 VDC
- Wide Operating Temp. Range -40 to +70°C
- Vibration resistant and rugged Sealing
- CE, UL und ECE-R10 certified
- Engineered and manufactured in Germany
- Dimensions (LxWxH): 60x45x15mm
- Weight: 50g
- Product number: 0850-0810
- Manufacturer: BARTH® Elektronik GmbH
EAN: 4251329401320
Documents
Manual STG-810 (EN) Programming Manual miCon-L (EN) Programming Manual KEIL® (EN) Arm Legacy Compiler v5 Guide (EN)Applications
Sample Programs KEIL® for STG-810Model Data
