Off-Delay
This function block delays the negative-going edge of its input signal by a time given by Tv in seconds.
The output Q will change to a logic 0 after a time Tv from a negative transition on P. The real delay time is the value of Tv rounded up to the next cycle; in practice this means that only delay times which are multiples of the cycle time can be realized. Tv is given as a float value, expressed in seconds. Tv may have a value smaller than one second, but may not be negative.
A free-running counter with 1ms cycle time will be used as reference value. Any impulse shorter than the delay time will be ignored.
Signals
| Name | I/O | Type(s) | Function |
| P | I | BIT | Input signal |
| Tv | I | FLOAT | Delay time value in [s] |
| Q | O | BIT | Output signal |
Visualization
If the output Q is logical 1, the function block will be highlighted. (Only during online monitoring mode).
Comments

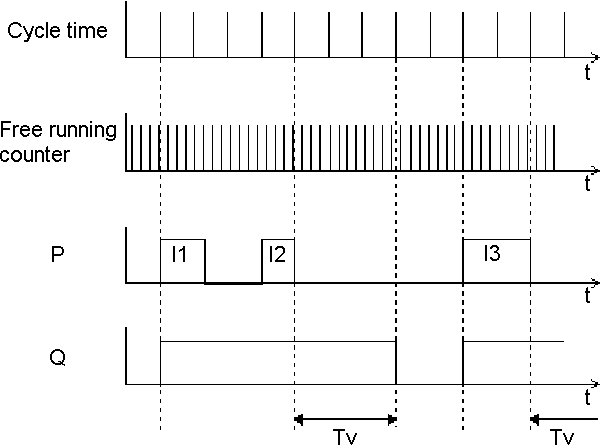

If P stays at logic 0 for a time less than Tv, the output state will not change and the delay will be applied to the last edge (see I1 and I2 in the figure).
