Addition
Addition of the input values.
Parameters

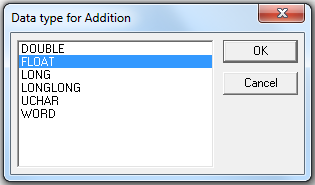

Through the parameter dialog the data type can be assigned.
Signals
| Name | I/O | Type(s) | Function |
| X1 | I | UCHAR, WORD, LONG, LONGLONG, FLOAT, DOUBLE | Summand 1 |
| X2 | I | UCHAR, WORD, LONG, LONGLONG, FLOAT, DOUBLE | Summand 2 |
| Y | O | UCHAR, WORD, LONG, LONGLONG, FLOAT, DOUBLE | Sum |
Comment
If no connection exists, another data type for a block can be assigned by creating a new connection.
If the data type is changed by the parameter dialog, all invalid input and output connections will be deleted.
