Modulo-Division
Modulo division of the input values, i.e. calculating the integer remainder of the division.
A modulo division of 0 results in 0.
Parameters

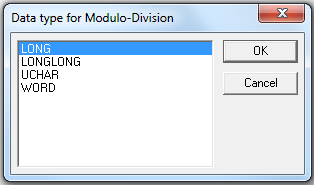

With the use of the parameter dialog the data type can be assigned.
Signals
| Name | I/O | Type(s) | Function |
| X1 | I | UCHAR, WORD, LONG, LONGLONG | Dividend |
| X2 | I | UCHAR, WORD, LONG, LONGLONG | Divisor |
| Y | O | UCHAR, WORD, LONG, LONGLONG | Residue |
Comments
If no connection exists, another data type for a block can be assigned by creating a new connection.
If the data type is changed by the parameter dialog, all invalid input and output connections will be deleted.
