AND
This function block computes the logical AND of up to 8 input BIT signals. This means the output is logical 1 if all input signals are logical 1. All input signals, as well as the output signal, may be negated.
Parameters

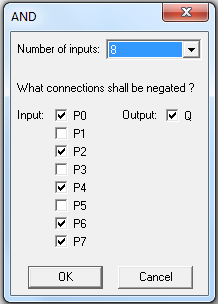

The parameter dialog can be used to define the number of input signals, as well as the selection of negated signals.
Signals
| Name | I/O | Type(s) | Function |
| P0 | I | BIT | First input signal |
| ... | |||
| Pn | I | BIT | Other input signals (n=1 to 7) |
| Q | O | BIT | Result |
Visualization
If the output Q is logical 1, the function block will be highlighted.
